The PIG system is ideal for the recovery of any product remaining in a pipeline at the end of the transfer process. As this product can be of a high value the PIG system recovers the product removing it from the pipelines and preparing the pipeline for a CIP process.。 Another benefit is the reduction of the fluid sent to the sewage treatment plant that results in saving energy and water.
The main application of the system is viscous media. Among the products treated there are chocolates, marmelades, confectionary creams in the food-processing industry, or gels, creames and other body care products of high value in the cosmetic industry.
SilPig Product Recovery System
请求信息
SilPig Product Recovery System
操作原理

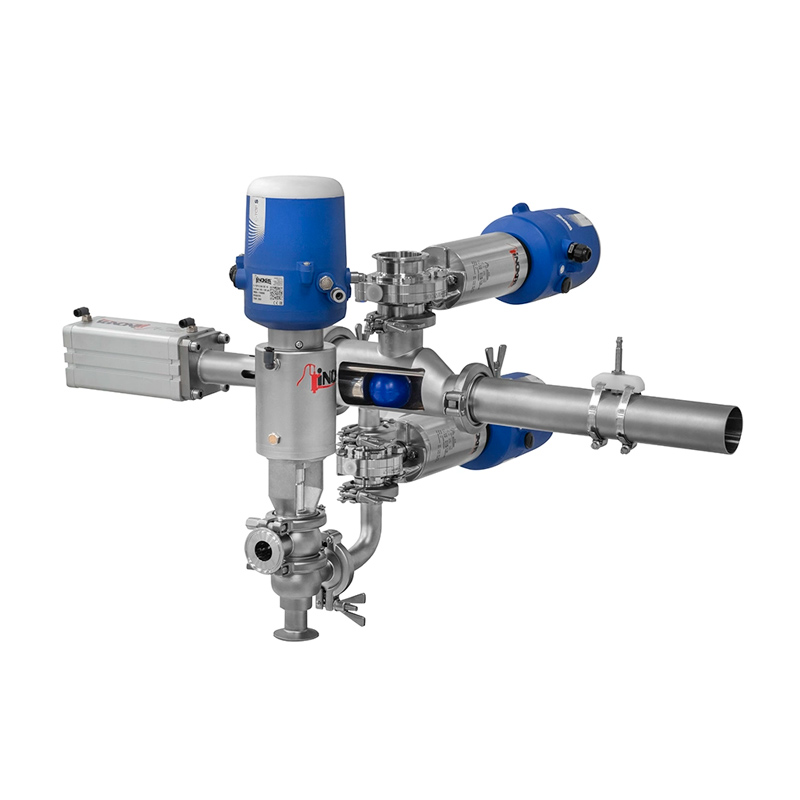

The SILPIG system consists of a sending station, a receiving station, the PIG, two position detectors, four A480 butterfly valves, and two INNOVA K valves.
The process begins by placing the PIG in the launch position. It is propelled toward the receiving station by a driving fluid, usually compressed air. As it moves, the PIG pushes the product inside the pipeline for recovery. Once it reaches the receiving station, the entire system can be cleaned through CIP, with the added advantage that the PIG is also cleaned. After this phase, the PIG is returned to the launch station, and the system is ready for the next production cycle.
设计和特征
Hygienic system.
High level of product recovery.
PIG can pass through 1.5D bends.
材料
Parts in contact with the product 1.4404 (AISI 316L)
Other steel parts 1.4301 (AISI 304)
Seals in contact with the product EPDM (standard) - FPM
PIG VMQ (standard) - NBR - EPDM
Surface finish
Internal brigh polish Ra ≤ 0,8 μm
External matt
Sizes availables
DIN EN 10357 serie A DN 40 - DN 100
ASTM A269/270 OD 1½’’ - OD 4’’
SMS 38-104
Connections
male, clamp
选择
Tableau électrique.
Prise d’entrée 90°.
Chambre de chauffe.
文件
Data sheet (4)
操作原理
The SILPIG system consists of a sending station, a receiving station, the PIG, two position detectors, four A480 butterfly valves, and two INNOVA K valves.
The process begins by placing the PIG in the launch position. It is propelled toward the receiving station by a driving fluid, usually compressed air. As it moves, the PIG pushes the product inside the pipeline for recovery. Once it reaches the receiving station, the entire system can be cleaned through CIP, with the added advantage that the PIG is also cleaned. After this phase, the PIG is returned to the launch station, and the system is ready for the next production cycle.
材料 and 选择
Parts in contact with the product 1.4404 (AISI 316L)
Other steel parts 1.4301 (AISI 304)
Seals in contact with the product EPDM (standard) - FPM
PIG VMQ (standard) - NBR - EPDM
Surface finish
Internal brigh polish Ra ≤ 0,8 μm
External matt
Sizes availables
DIN EN 10357 serie A DN 40 - DN 100
ASTM A269/270 OD 1½’’ - OD 4’’
SMS 38-104
Connections
male, clamp
Tableau électrique.
Prise d’entrée 90°.
Chambre de chauffe.
文件
